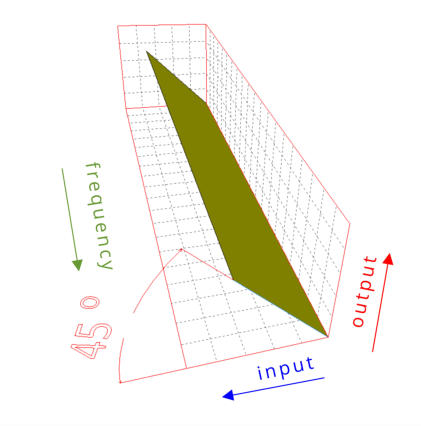

USING DSP TO EXPAND DYNAMIC RANGE AND OTHER PERFORMANCE BARRIERS - AN IN-DEPTH DISCUSSION Warning - this is where it gets technical. The Devil is in the details - and they are. I’ve done my best to keep it simple, hopefully well enough to get the points across. Quiz me by email if you need clarification. At first look most audio engineers understand that DSP is a new way to execute the crossover function; to divide the frequency bands assigned to the various drivers. That’s true, but there’s much more to it. At this point I wish there was a way to prevent other speaker designers from learning from me what I have discovered during the past six or seven years of working with DSP. But no, that can’t be done without also withholding our ideas from our customers. At Meadowlark we own a long- earned reputation for being forthcoming and open. Let ‘em steal. So what? Here ‘goes: First let’s understand the problems: WHAT IS DYNAMIC RANGE? WHAT IS DYNAMIC LINEARITY? Dynamic Range, DR, is the difference between the largest and smallest signal a system responds to. For human hearing that envelope is about 120dB, with OdB being the softest audible sound and 120dB being the threshold of pain. The scale is logarithmic, each 10dB = ten times, so 120dB = 100,000,000,000. Also, for us to perceive a sound to be twice as loud as another, it must actually be four times as loud. So the whole issue of apparent loudness and dynamic range is an exponential function. For most sane audio reproduction purposes an upper limit is around 110dB. So, ideally, we’d want our system to scale from 0 to 110dB perfectly, without losses. Meaning that every time the input signal doubles, the acoustic output doubles across the entire audio band, 20Hz to 20,000Hz. In other words a 1:1 transfer function across the band. Here’s a 3D graph showing Perfect Dynamic Linearity:

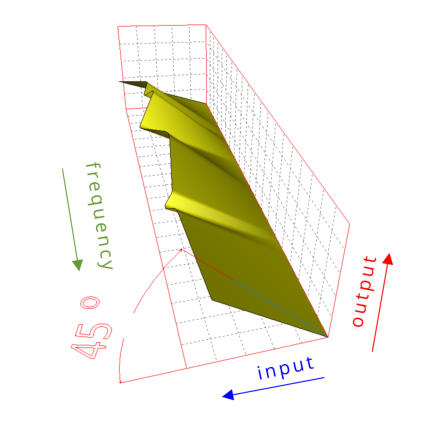

But, that’s not what happens. Audio systems come up short and usually in messy ways with respect to frequency. This is nonlinear, compressed DR. This is why stereos glare and strain when you turn them up. Your system is guilty:

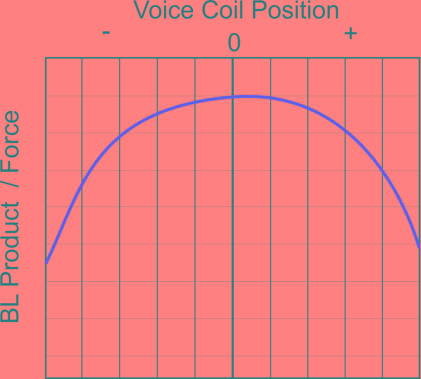

WHAT’S CAUSING THIS? Ever notice that nobody talks about this? Three reasons: they don’t understand it or they don’t know what causes it or they do and they don’t know what to do about it. The lion’s share of the trouble occurs in the woofer, so let’s narrow our thoughts to that for a while. Why would a woofer fail to give you a 1:1 input:output transfer function? Most do, but just for very small signals, then as the signal ramps up the problem ramps up, and quickly. Here’s are the two big reasons: 1) Nonlinear motor force vs voice coil position. Huh? Hang in there. When the voice coil is at the center of its range of in-and-out motion, the force created by the motor is at a peak. Then, as it moves further in or further out that force is sort of linear for a while, then falls off. This is typical:

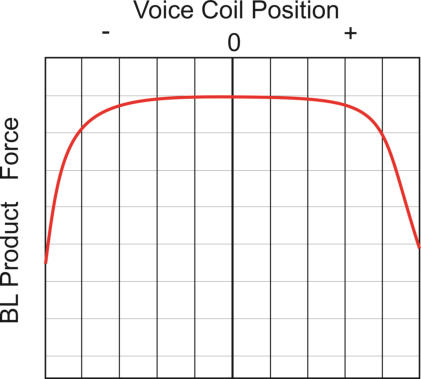

So, as you turn it up and excursion tries to increase, it does but at less than a 1:1 ratio. And - this is KEY - required excursion is an inverse square function of frequency - meaning that each time you half the frequency, you quadruple the necessary excursion to transduce the signal at the same amplitude. So, when the music has bass, especially deep bass, gobs of excursion are required. Another key idea: with respect to excursion, the greater the percentage of the time the coil is out of the ‘sweet spot’ the greater the loss of Dynamic Linearity. The consequence is called Dynamic Compression. This is why, when you try to play bassy music loudly, the woofer can’t accommodate, the mids get congested while the trebles do OK, causing the tonality to shift toward hardness and glare. Today, driven by the need to improve DR, the top woofer makers are striving to get a more linear result, one that looks more like this:

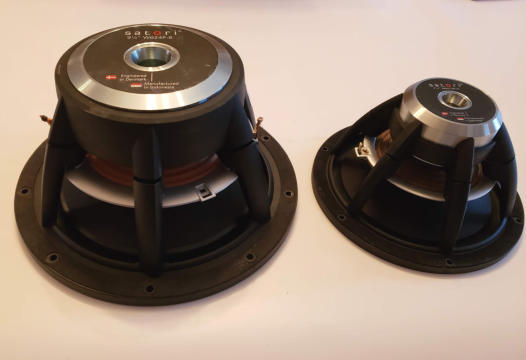

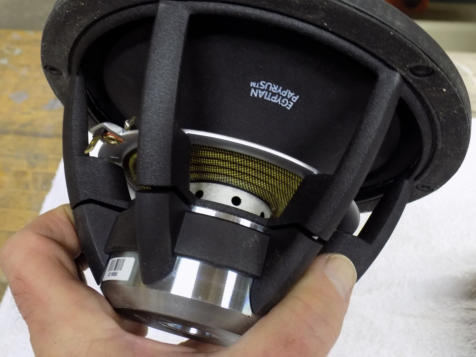

2) The second serious cause of Dynamic Compression is voice coil heating. Sad fact: heat generated is a square function of current. And resistance to the flow of electrons increases with temperature. So as coil temperature rises, output falls, and fast. Notice that every darn thing is a square function working against us? This is called Thermal Compression, and today’s top woofer makers are working hard on this problem too. Effective strategies for venting and heat dissipation are becoming more and more important as a response to HD Audio’s demands. Note the heroic venting on our Ibis woofer and midwoofer:

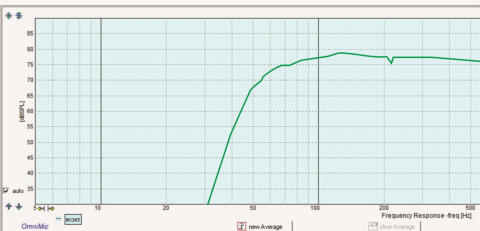

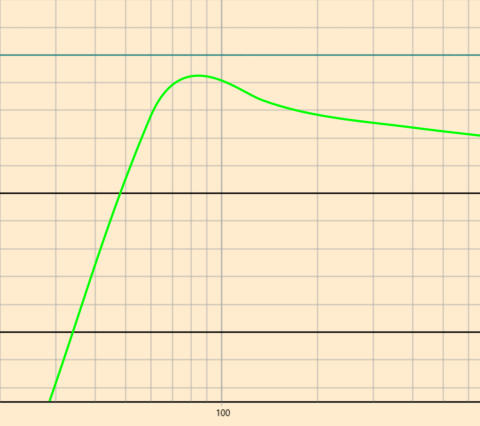

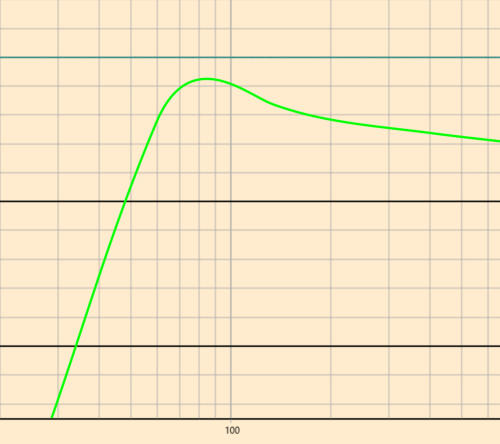

Of course, using multiple woofers both keeps the temperature low and keeps the coils in the sweet spot. Hence the dual woofers in Ibis and Predator and the four woofers in out big bottom octave systems. OK, so all of this is about mechanical issues, what does it have to do with DSP? Key idea: all woofer systems exhibit a roll of at the bottom of their range. For, say, a typical bookshelf speaker it’s not really doing much work below 50 or 60Hz. The output curve looks something like this:

HOW DOES DSP CHANGE THE FUNDAMENTALS OF BASS SYSTEM DESIGN? This idea is a revolution in bass system design that took me some time to discover. Vented bass system design has always been a compromise between two opposing goals - and it’s one of the most difficult for designers to do well. You want extension down to as low a frequency as possible and you want your transducer to faithfully follow the signal, give maximum resolution. But those two trade off against each other. A vented alignment is a resonant system; it achieves extension by ringing. Ringing is bad because it is not part of the input signal, the signal is smeared forwards in time just as the strike of a bell causes it to ring. So the engineering unfortunately involves the “splitting of the baby”. Some ringing, just enough to get a full bodied sound, but not so much as to sound tubby and sloppy. Here are the graphs. If the input signal starts and stops and looks like this:

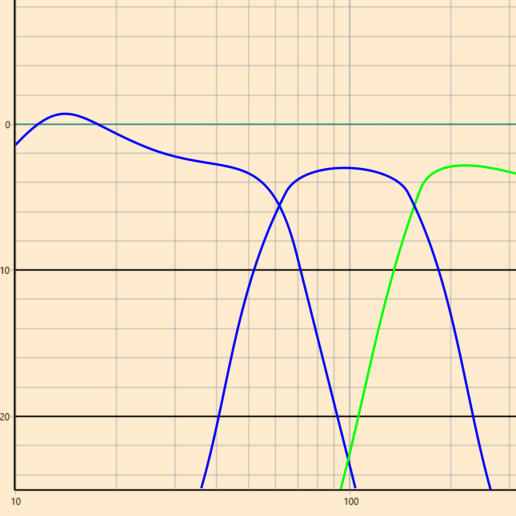

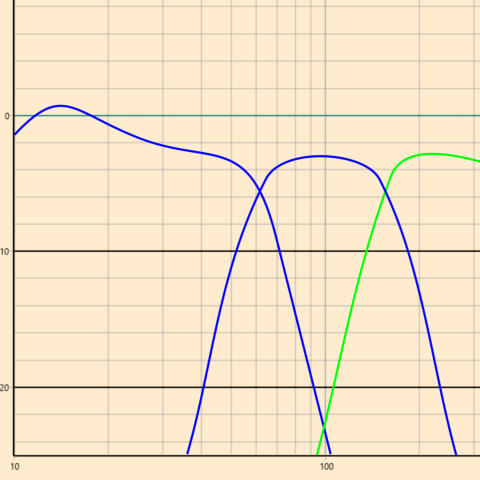

The inside joke is that you’re getting all of the bass you paid for, just a tad late. It’s a subjective choice, but just me, I designed my conventional speakers a bit on the “tight” side and have never regretted doing so. Key idea: Now, finally, that painful compromise is gone. Gone! Now we align each woofer into an ideal sealed enclosure - critically damped - meaning ideal signal tracking, meaning best rise and settle times - then we simply “buy” back sacrificed low bass with the processor and more powerful amps. The consequence is greatly improved resolution in the bass. No more ringing and smearing. Tight, fast, resolute. So we’re using this two pronged strategy - a high pass filter followed by boost - to make three big beautiful gains in DR, resolution and extension. I rest my case. When you hear the result, you’ll rest yours too. THERE’S MORE. NOW WE CAN ACHIEVE A WHOLE NEW LEVEL OF REALISTIC BASS SYSTEM PERFORMANCE: DUAL BAND BASS Here’s another remarkable step up we can take with DSP. There’s really no such thing as a woofer that makes first-rate bottom octave, 20-40Hz, and makes first-rate mid and upper bass. Those adverse square functions I referred to earlier are just hard to overcome. So, for a big-boy bass system, we’d like to use specialized drivers. By now you can probably guess that a passive crossovers is a non-starter at these frequencies - very large value parts that decouple the driver from the amp so badly that the whole idea crumbles. But with a Digital Signal Processor the problem turns trivial. We merely apply gobs of power to critically damped low and upper frequency specific drivers, our trademark DUAL BAND BASS. The net result is woofers that are closely tracking their signals AND doing an optimal job of handling their comfortably narrow assignment; the net result is bass that finally sounds like the real thing. That “stereo sound” in the bass is banished; bass detail and timbre that you never knew was on your favorite recordings will jump right out at you. This advance is the single most delightful thing I’ve achieved, it’s just thigh-slapping-fun. You should own it. Too, I’ve noticed that some to whom I’ve presented these ideas to are so attached to traditional HiFi that they don’t want to hear any of it. Even though they know it’s true. I hope that’s not you. One final thought. I’ve designed our line so that you can start with Kite, then each time you take a step up you gain on every front we’ve just discussed. So resolution, dynamics, output and bandwidth all escalate at once. I know of no other audio product line that can make that statement. This is what 21st Century High End audio will eventually look like - we’re just out ahead of the others.

You’d like your woofer to do something like this:

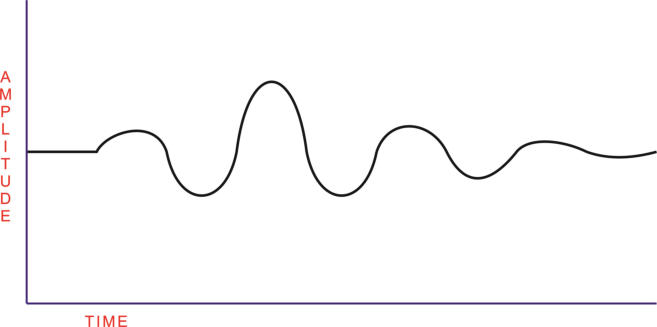

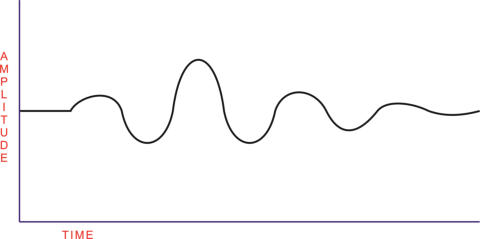

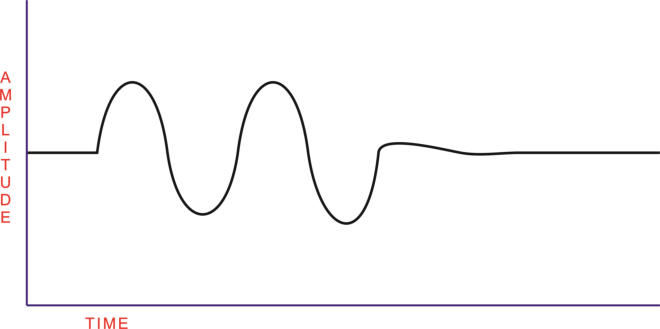

But your vented alignment will actually do this, slow to start, slow to stop. Sloppy ringing:

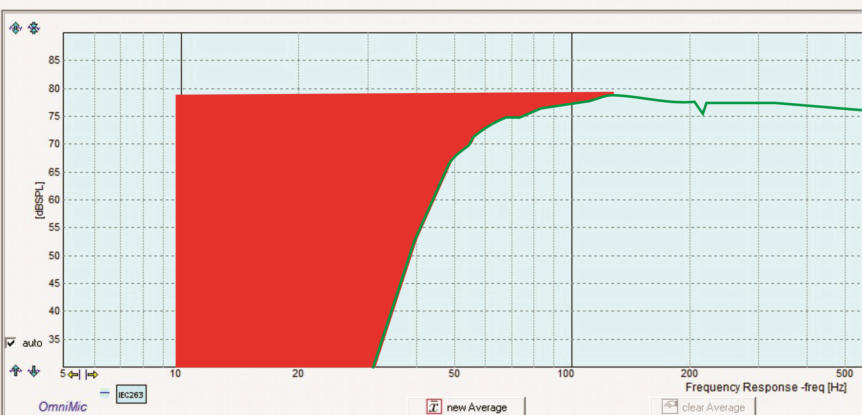

But your amp is still pushing in power into the region below the rolloff. What is that power doing? It’s not making much sound but it IS excurding the coil AND making plenty of heat. All hurt and no help.

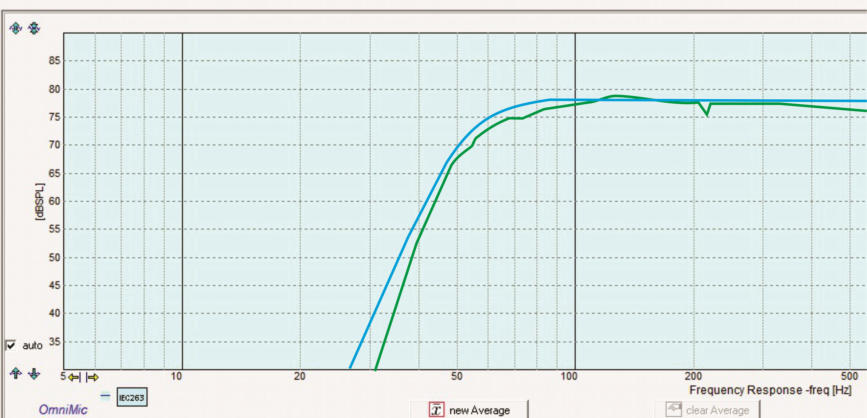

Until now we’ve been stuck with that, but no more, we can simply dial it out with DSP. The blue line - called a ‘high pass’ filter. We simply don’t send any of that “red” power to the woofer.

Now the coil excurds less, so it spends a greater percentage of its time in the sweet spot, plus it’s staying much cooler. BANG! We get an instant, zero downside improvement in DR. Just me, this is the first “free lunch” I’ve ever eaten! The improvement is not subtle; one big jump up in DR. Plus, now the system can play louder than before because you’re not banging the stops, allthewhile maintaining it’s composure. Congestion and midrange blur on complex and energetic music go away. Smaller speakers can sound like bigger ones and big ones can do amazing things.
